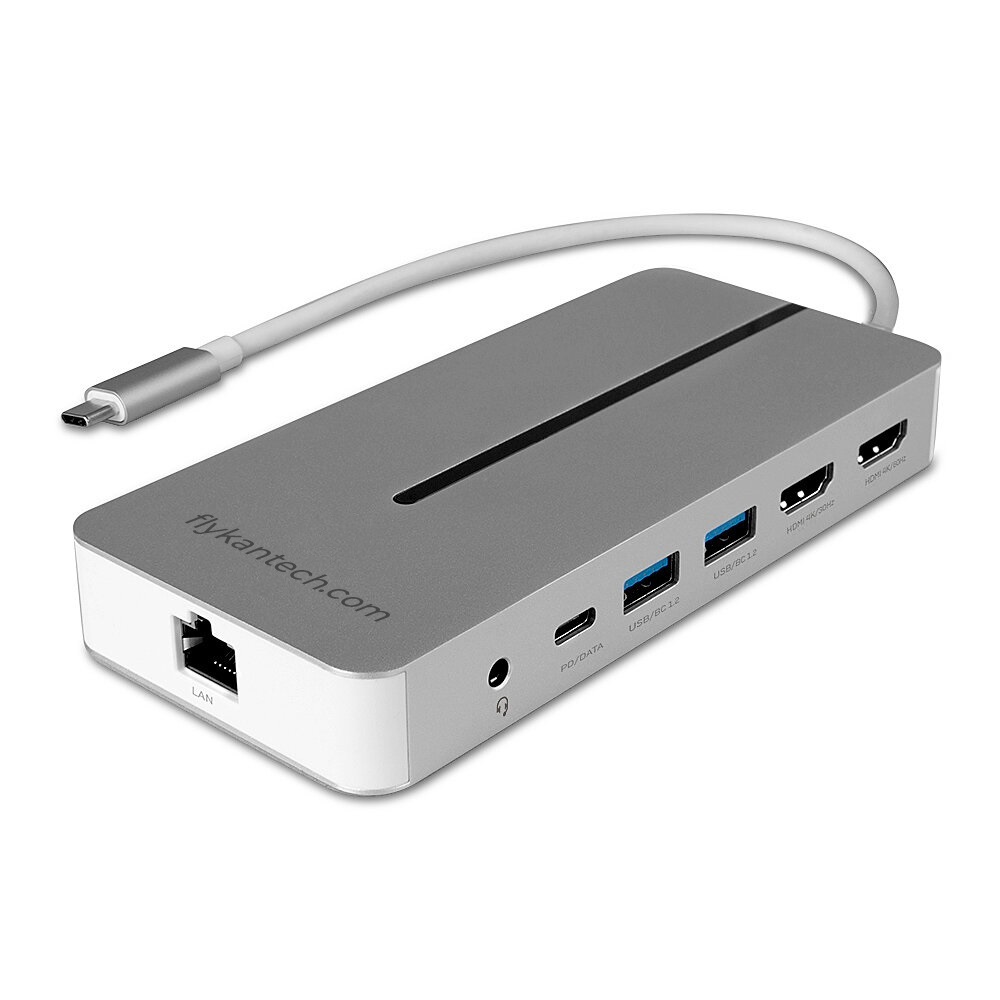

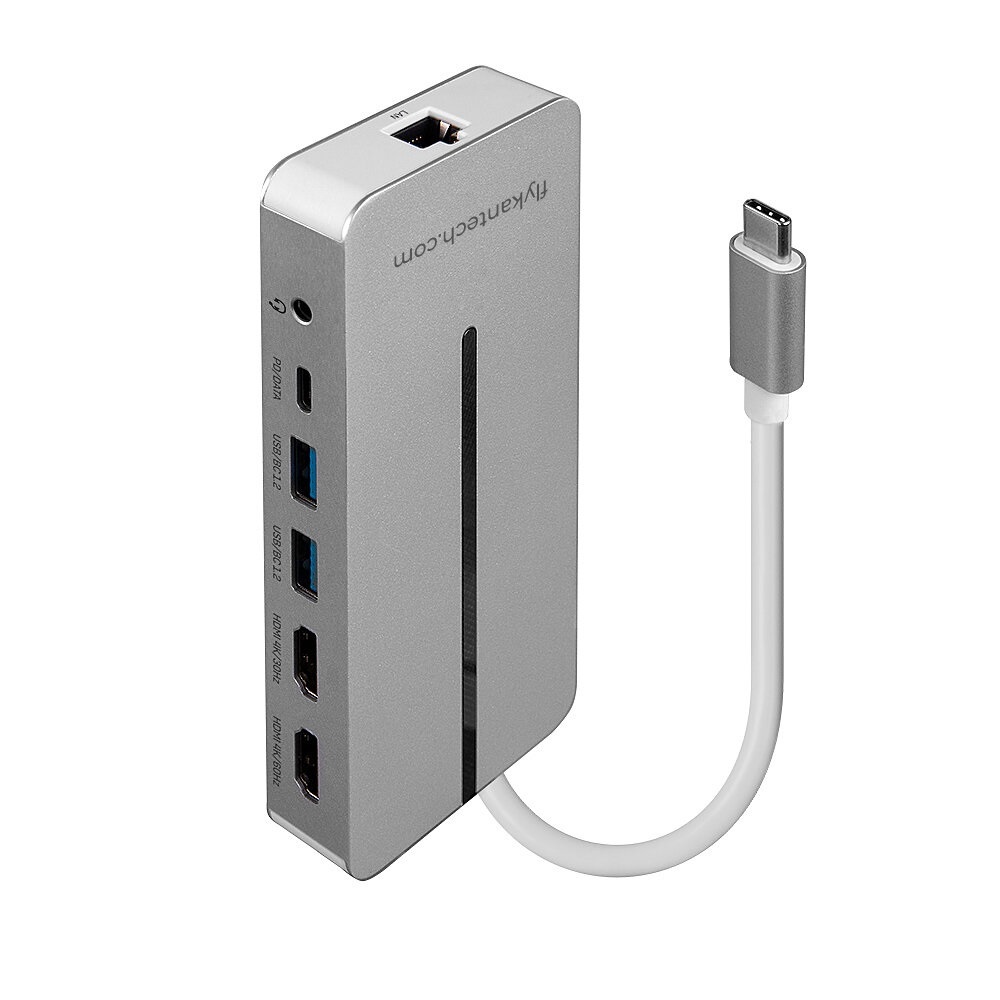

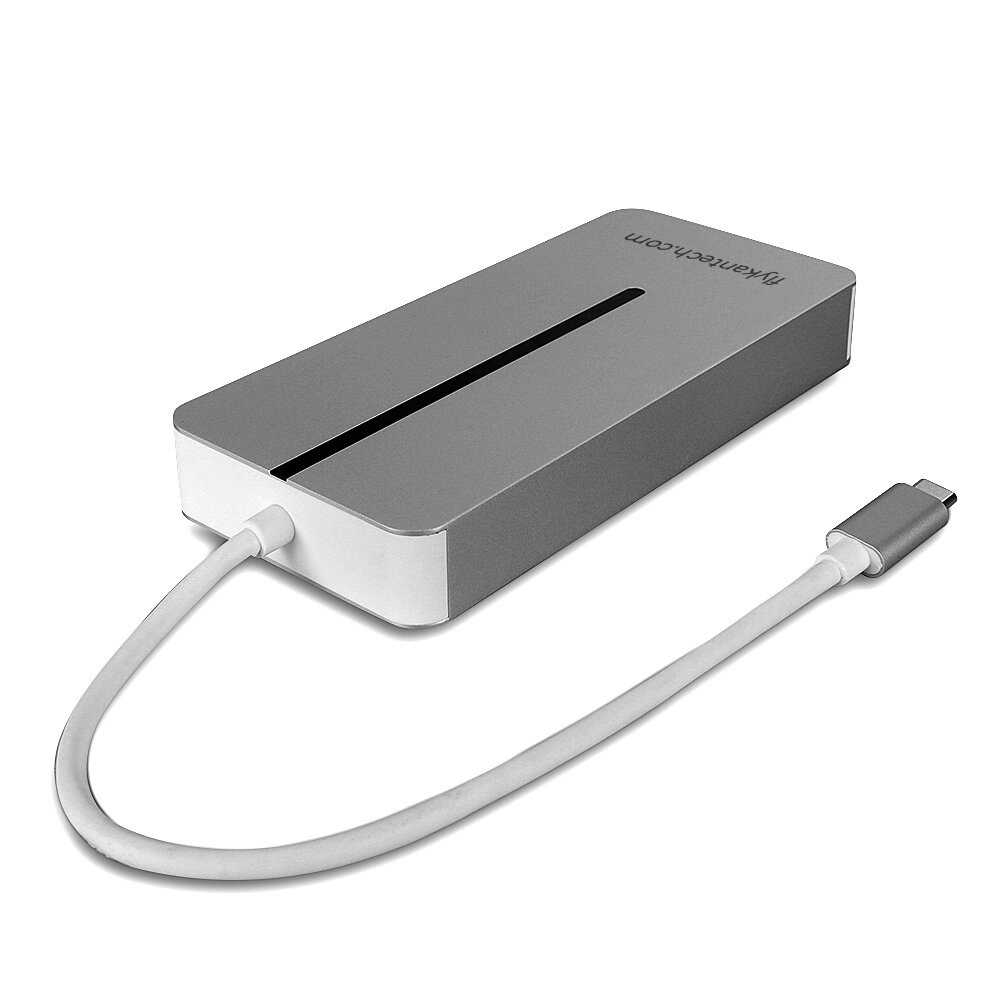

USB Type-C Dual 4K Docking Station - DK1145, PD100W

Item No.: DK-1145
The flykantech.com DK-1142 is a versatile docking station that enhances connectivity with dual 4K30Hz HDMI video outputs, expanded USB 3.0 ports, audio jack, Gigabit LAN, and a powerful USB-C port with 5Gbps data transfer and 100W PD.
Description Features Specificaitons
Description

The flykantech.com DK-1145 stands out with its innovative fusion of USB-Protocol external graphics and DP-Alt Mode external graphics, a game-changer for Apple users seeking enhanced expansion capabilities. Tailored for creatives, it elevates productivity by offering extended screen real estate in Ultra HD, coupled with rapid SuperSpeed data transfer for all USB peripherals. Encased in a durable aluminum frame, this docking station ensures reliability and portability, making it an ideal companion for your travels.

Diverging from typical docking stations, the DK-1145 impressively supports dual external displays at 4k resolution for your MacBook. Thanks to its MST support for Mac, two HDMI ports—one at 60Hz and the other at 30Hz—deliver Ultra HD resolution through a single USB-C connection, redefining your visual experience. Versatility Unleashed Crafted to meet diverse connectivity needs, this docking station simplifies your workflow with a single USB 3.2 Type C cable. Seamlessly connect 2 x 4k HDMI displays, access Gigabit Ethernet, leverage SuperSpeed 5Gbps USB Type-A ports, and enjoy the convenience of a 3.5mm combined headphone jack for comprehensive versatility.

Featuring an integrated PD 3.0 port, the DK-1145 facilitates up to 100W pass-through charging (subject to charger capabilities). This allows simultaneous device charging during work sessions, preserving ports for additional peripherals and accessories, unlocking more connectivity potential. Streamlining operations, a straightforward software installation is required for optimal functionality. Download the software directly from the product page, connect the docking station to your device, and experience a hassle-free setup, ready to elevate your work environment.

Features

■ Adds Dual 4K 3840x2160 HDMI displays to Windows and Apple M1, M2 & M3 PC' s
■ Provides 2 USB Type A ports & 1 USB Type C port (5Gbps), Gigabit Ethernet and an Audio combo port
■ HDMI-1: DP-Alt Mode Video ( Driver Free for DP-Alt Mode Devices)
HDMI-2: USB-Protocol Video Output (Drivers Required)
■ USB Power Delivery 3.0 (100W)

Specificaitons

Interface: USB Type C to 2x HDMI / 2x USB Type A / 1x USB Type C / 1x RJ45 / 1x Audio 3.5mm
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4 + 2.0, Gigabit LAN,  Audio (combo)
Supported Bandwidth:  10.8Gbps (HDMI 1.4), 18Gbps (HDMI 2.0), 5Gbps (USB 3.0), 10/100/100Mbps (LAN)
Maximum Input Resolution: 3840x2160@60Hz

Maximum Output Resolution
Single display: 4K 60Hz
Dual display: 1x 4K60Hz, 1x 4K30Hz

Compatibility: USB Type C or Thunderbolt 3/4 equipped computers. Windows, macOS, Linux, Android, Chrome OS. Power Delivery: PD 3.0 up to 100W (20V 5A)
Supported Audio: Supports 48/44.1kHz audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm

Special Features: USB Type C Female port supports power and data, 2x  Battery Charging 1.2 port, Software-based Silicon solution to connect any display to any computer that supports USB, compatible with Windows and MacOS; MST dual display for Apple M1 / M2 /M3

Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 2x HDMI (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port

Physical Properties
Dimensions WxDxH: 140x65x20mm (5.51x2.56x0.79in)
Housing Material: Aluminium, ABS (RJ45 port cover)
Net Weight: 0.2kg (0.44lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40 °C - 80°C (-40°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: Bus-powered

Documents Download
■ DataSheet Download - zip | PWD Protected |
■ DK-1145 Manual English Version | doc | PWD Protected |
